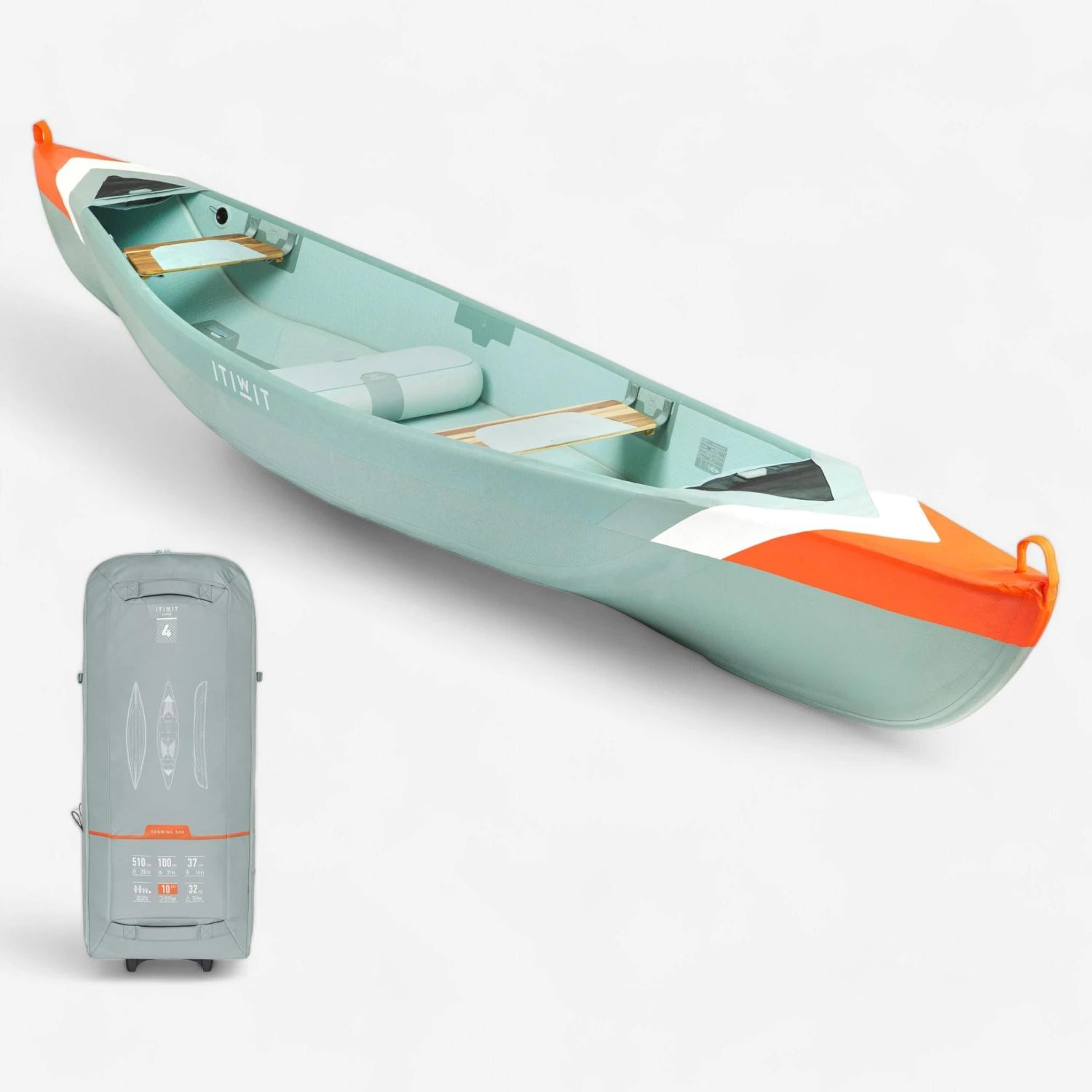

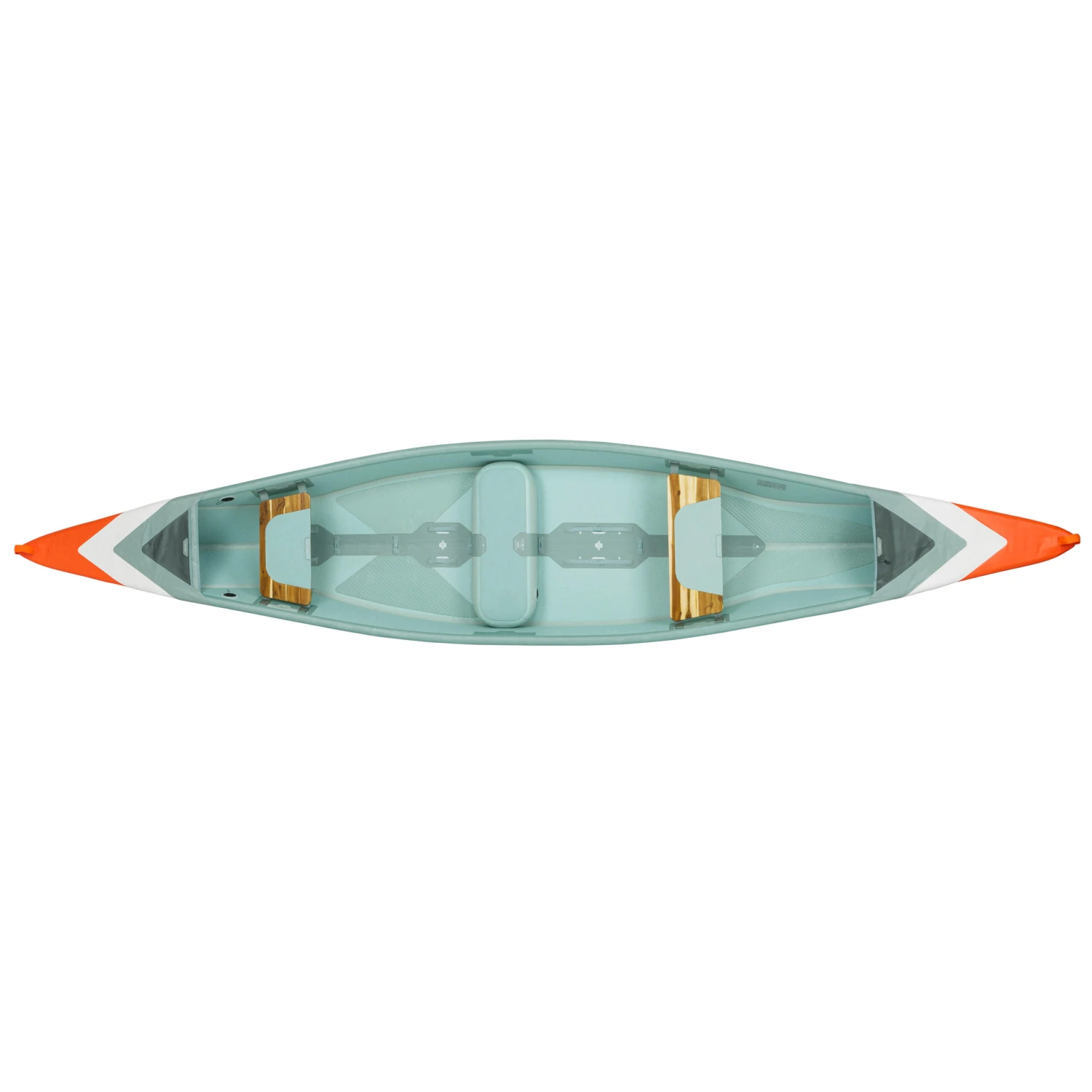

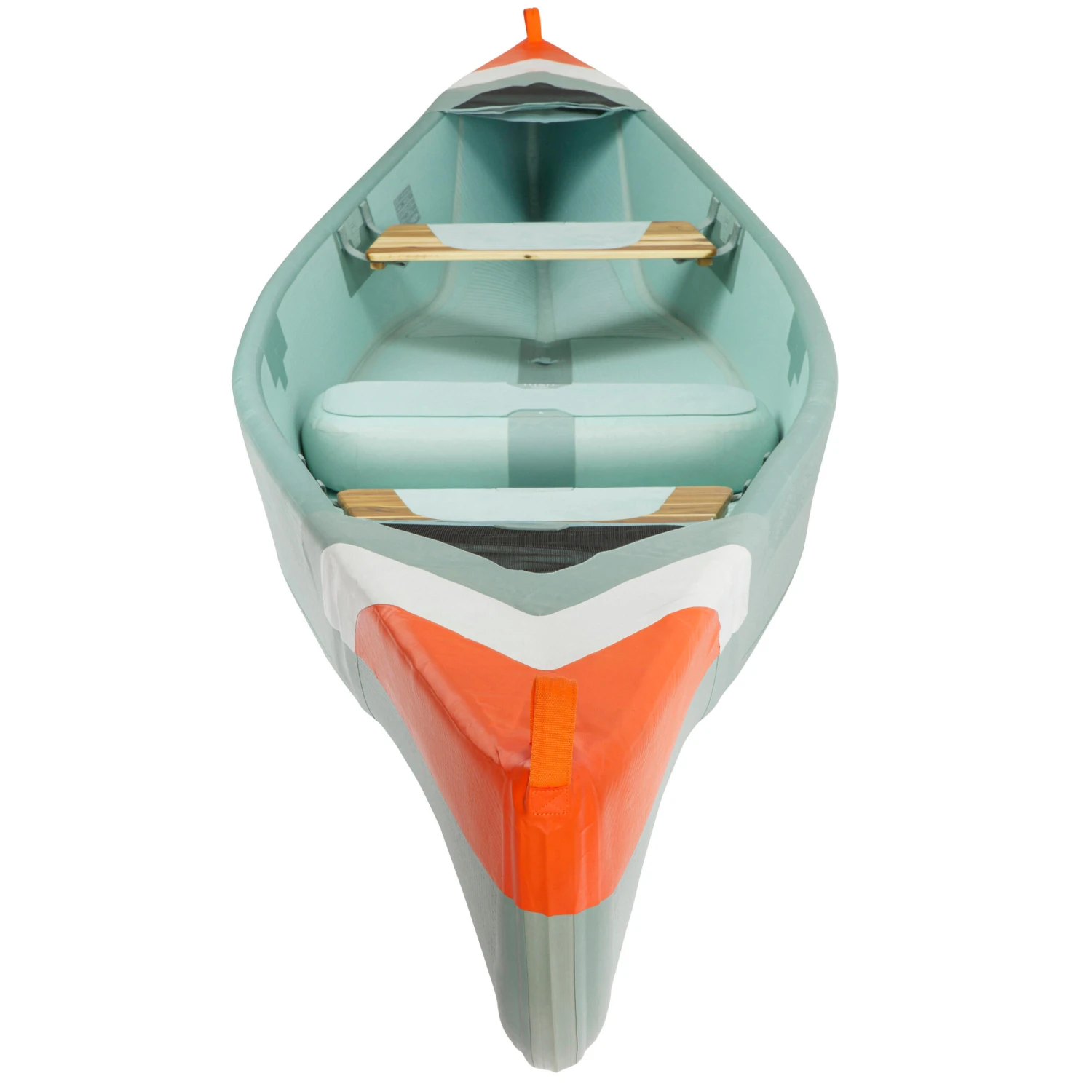

X500 High Pressure Dropstitch Inflatable Canoe 4 Seats (2 Adults + 2 Kids)

Canoe for intermediate canoeists who enjoy touring with the family, for the day, on a lake or calm river.Solid inflatable kayak with high-pressure dropstitch that seats four (2 adults and 2 kids) in a raised position for paddling comfort. Stability and performance.

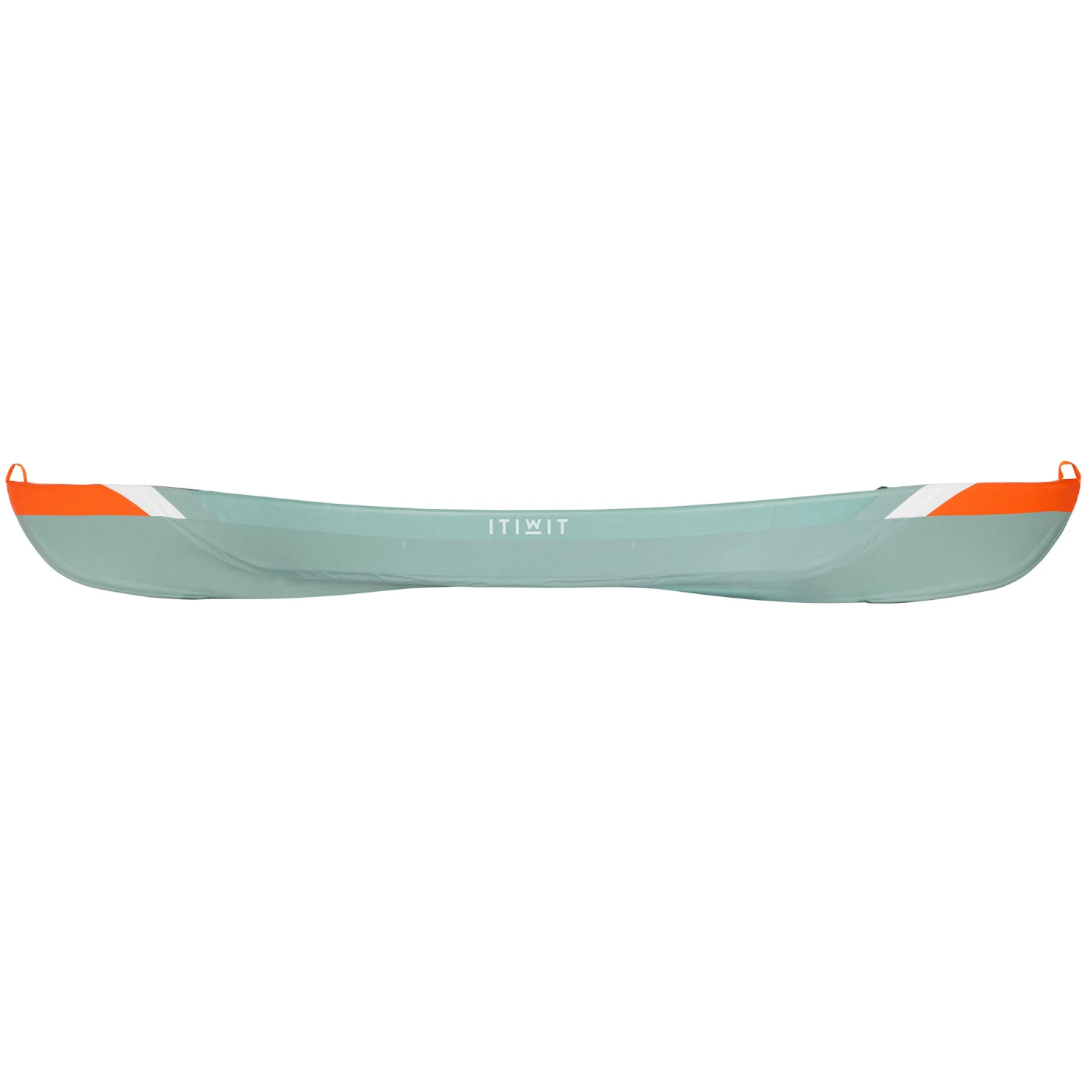

Technical dimensions and weight.

When the canoe is inflated:
> length: 510 cm (16.7 feet)
> width: 100 cm (3.3 feet)

When stored in its bag:
> Height: 100 cm
> width: 45 cm
> Thickness: 38 cm
> full weight: 32 kg (70 lbs)

Composition

The dropstitch is a mesh made of polyester yarns; between 2 layers of PVC. When the deck is inflated to high pressure, the threads are stretched and the construction becomes very strong, thus avoiding any deformation.
This is what makes our inflatable canoe extremely rigid but easy to store in a trolley bag once deflated.

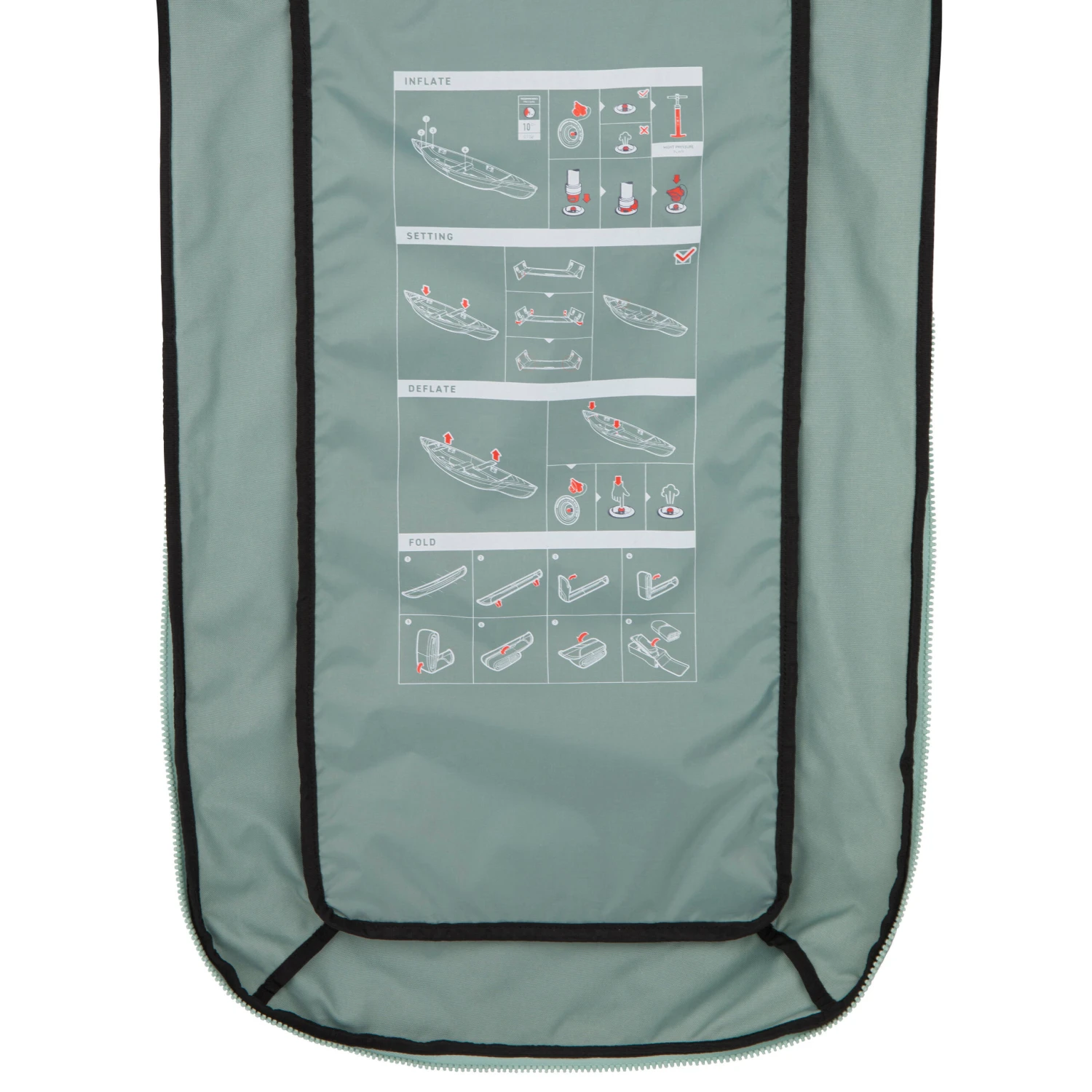

How to inflate and mount the canoe?

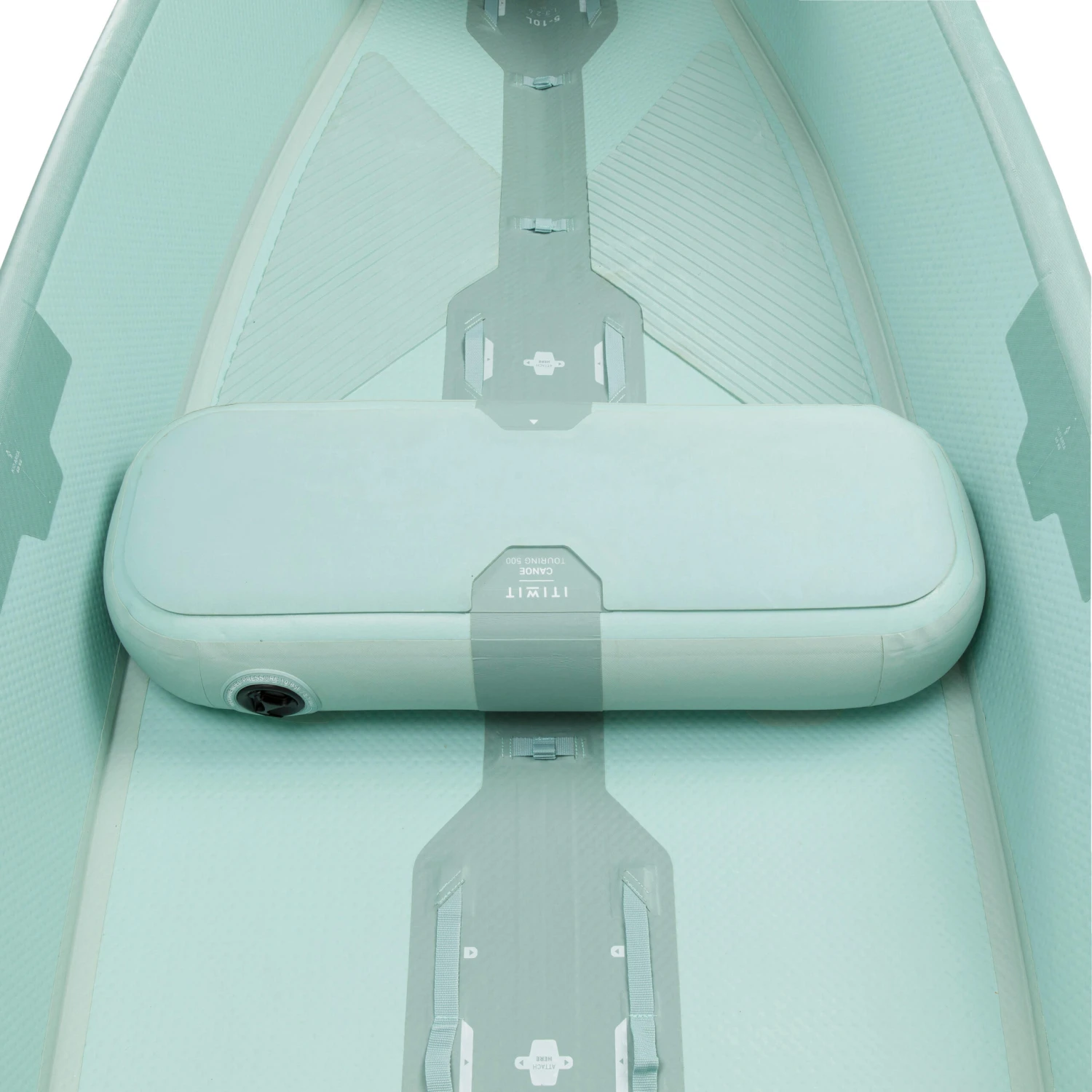

1. Inflate the main chamber (floor), then the intermediate chambers (walls), followed by the small chamber (central seat). All the volumes are inflated to 10 PSI max (0.7 bar).

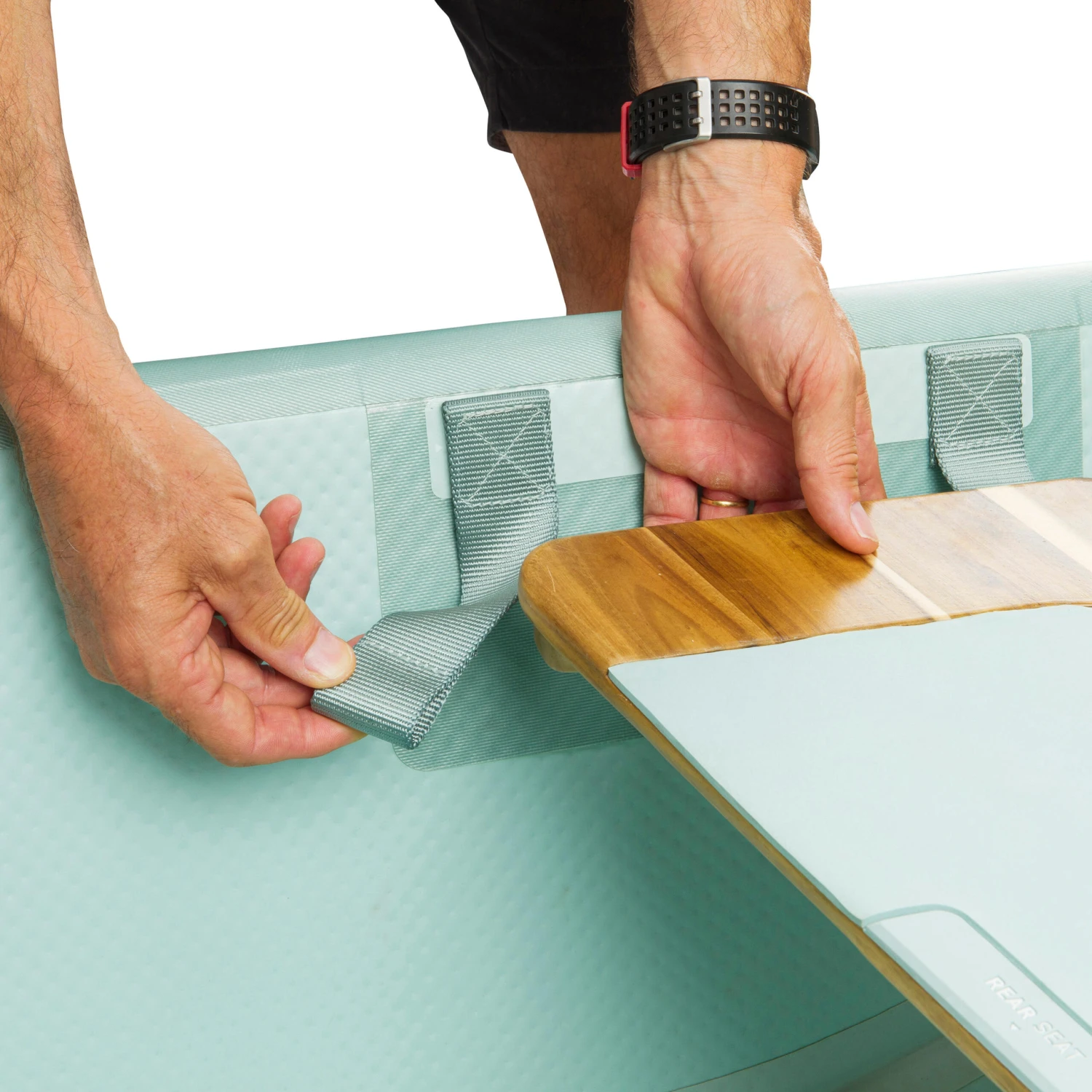

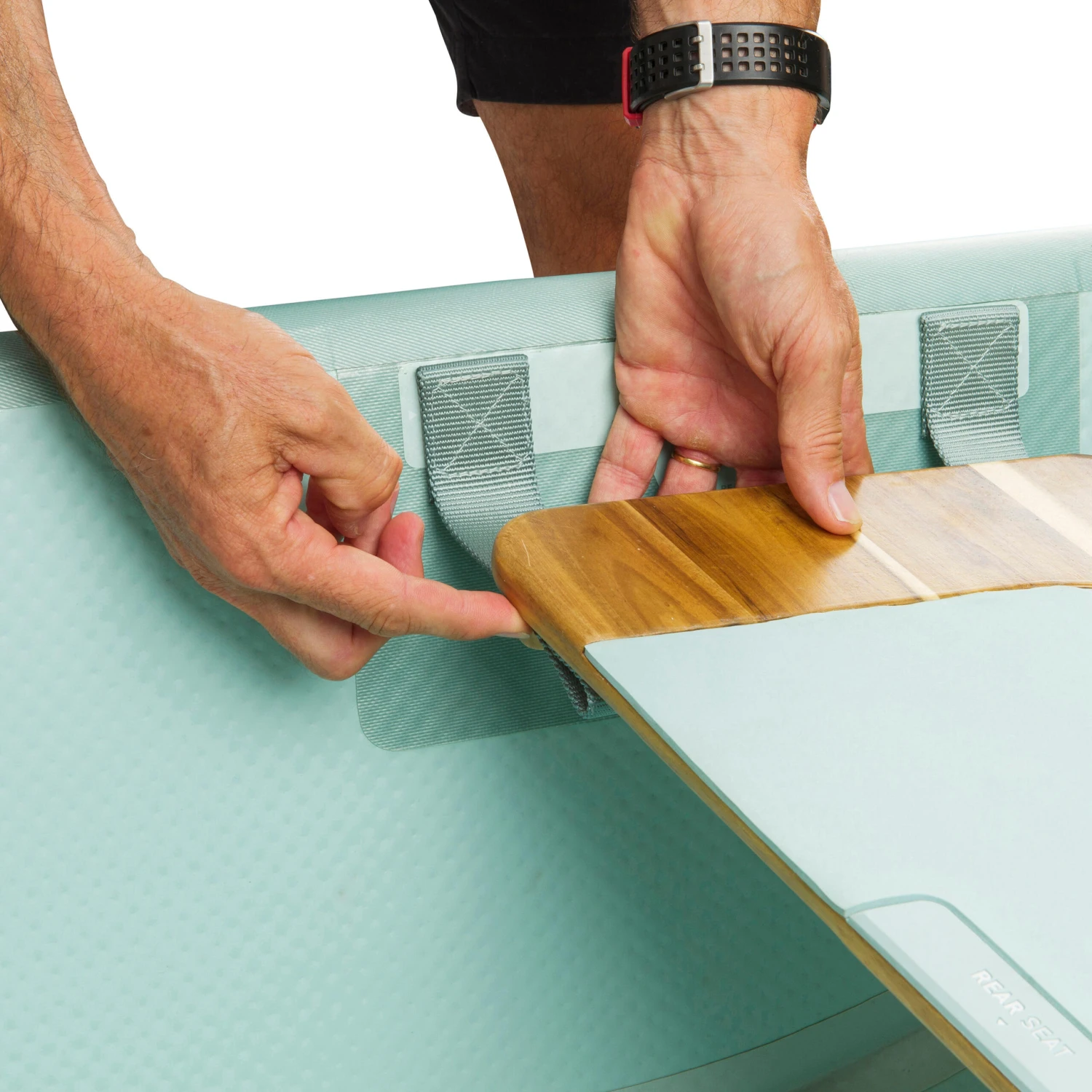

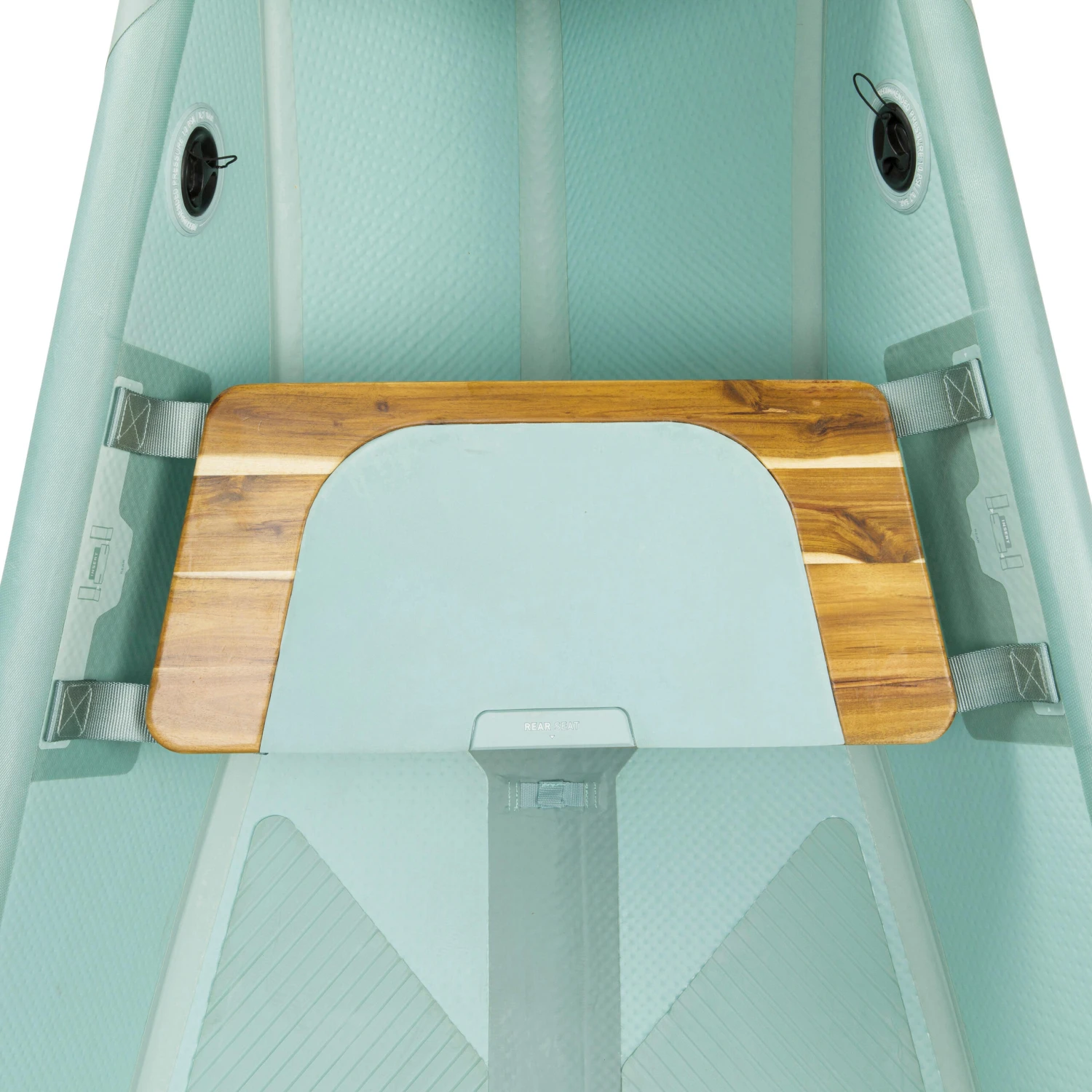

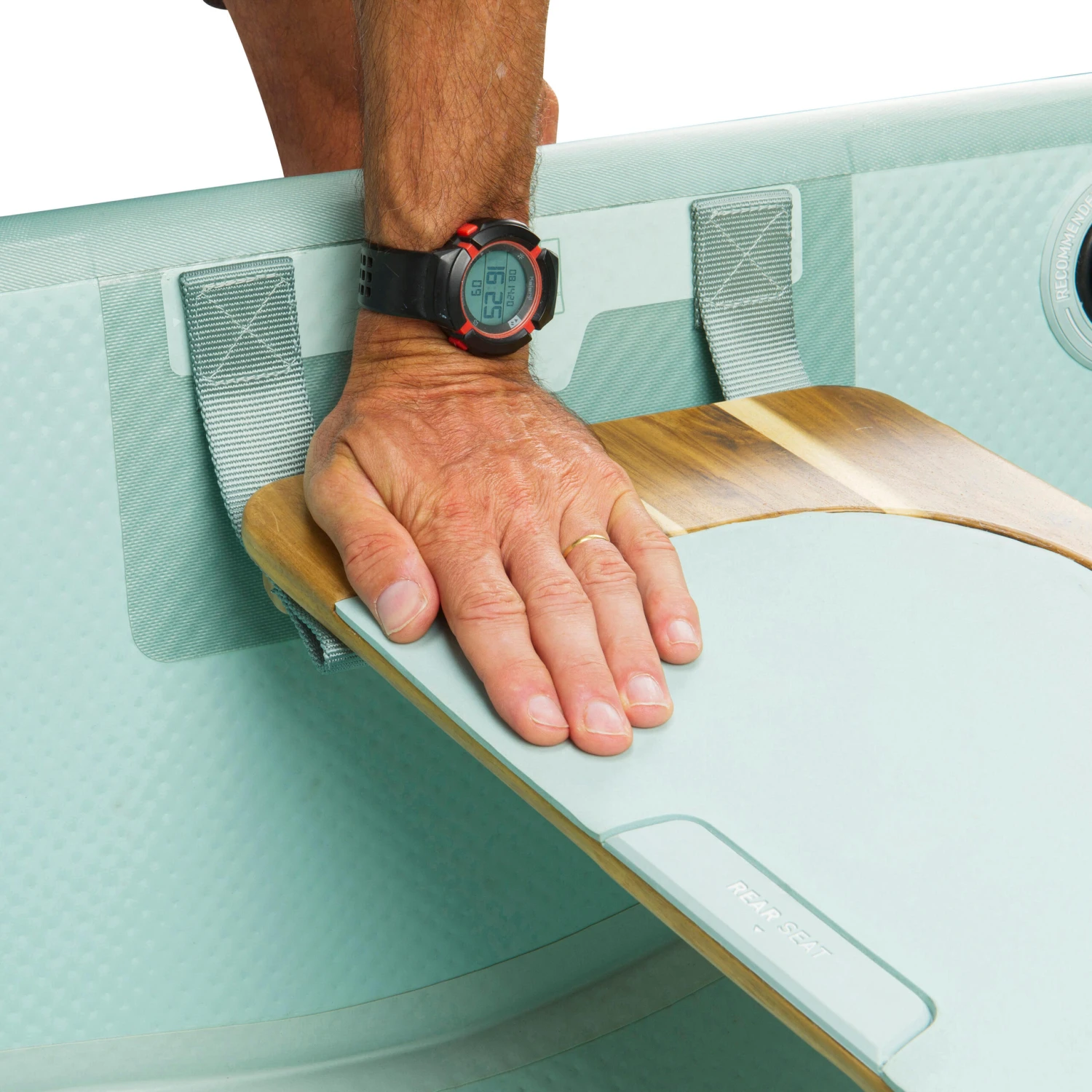

2. You can position the seats (front and rear) using the straps located under the walls.

We recommend the HP Itiwit twin-action hand pump (8387655).

How to disassemble and deflate the canoe?

1. Make sure that the surface on which you intend to fold is clean
.
2. Deflate the central seat by pressing on the valve piston.
3. Deflate the bottom and the side bladders by pressing the piston on each valve.
4. Fold the rest of the canoe in half lengthwise.
5. Fold the keel on itself to reduce the width of the canoe.
6. Make the first fold at the level of marking no. 1
7. Roll the canoe following the different markings visible on the hull

What if the kayak is pierced?

It would take something sharp to make that happen. If so, the canoe is composed of four independent “bladders”. The canoe floats enough to make it back to the shore safely.

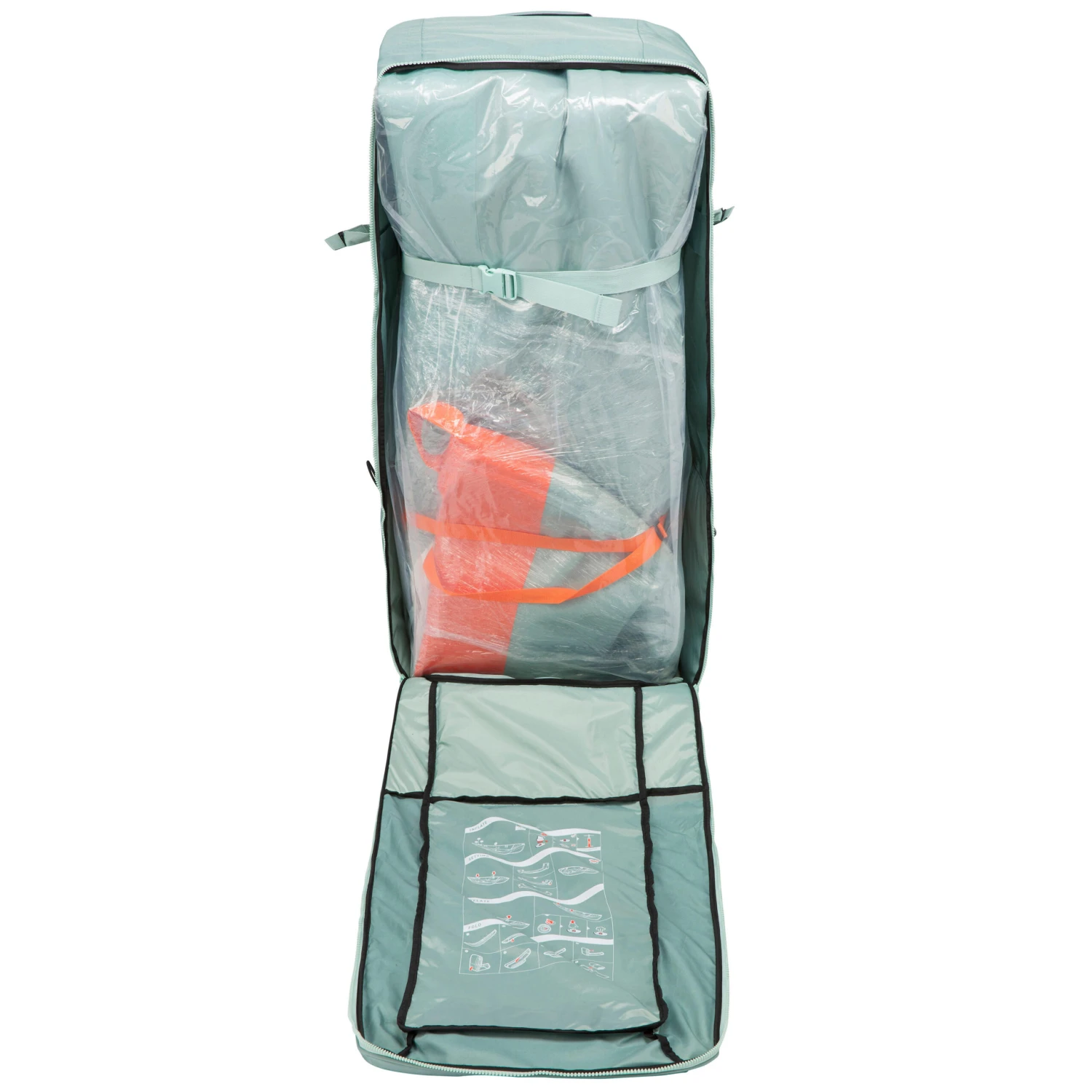

What does the Kayak bag contain?

The kit includes:
– the bag with wheels
– the canoe + built-in inflatable seat for children

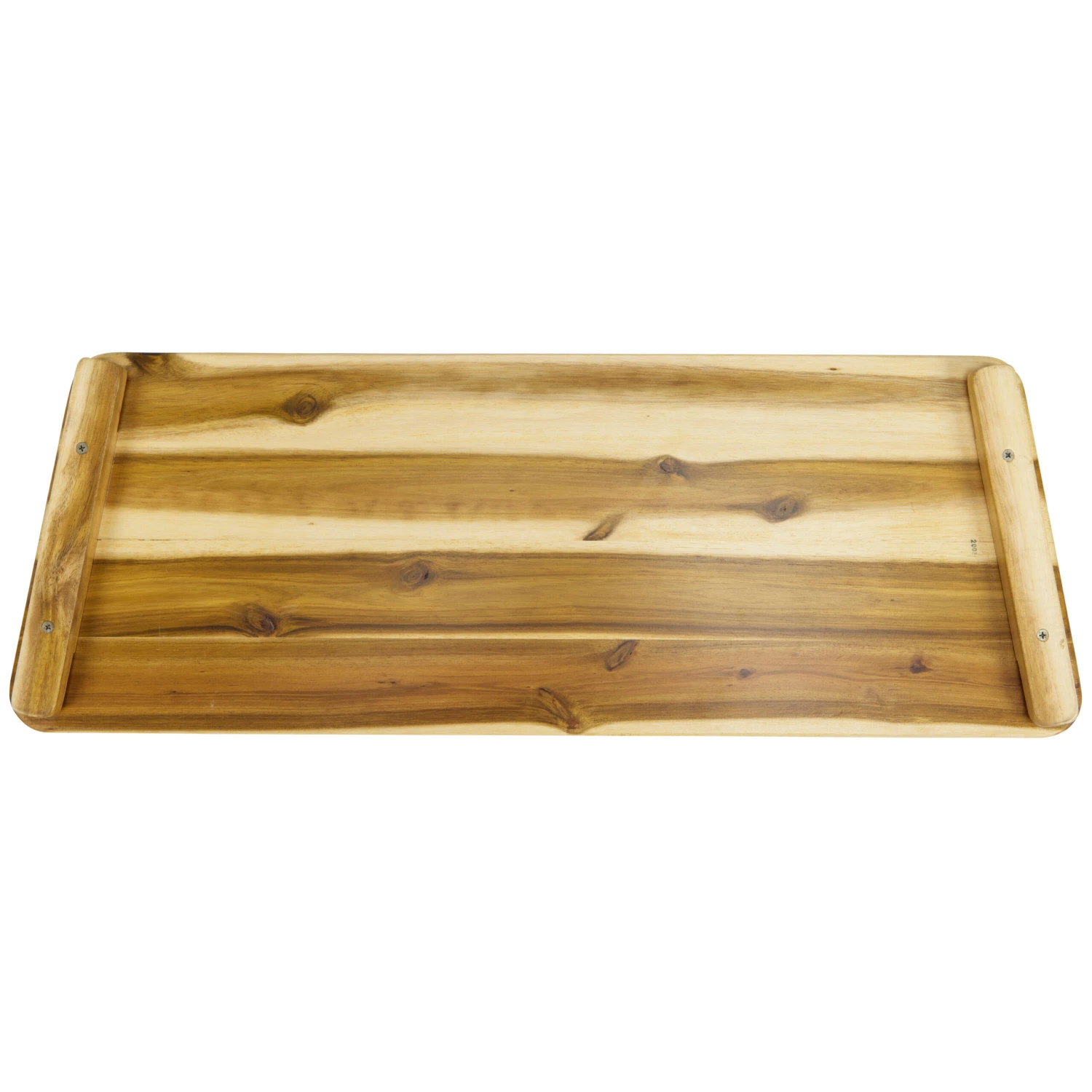

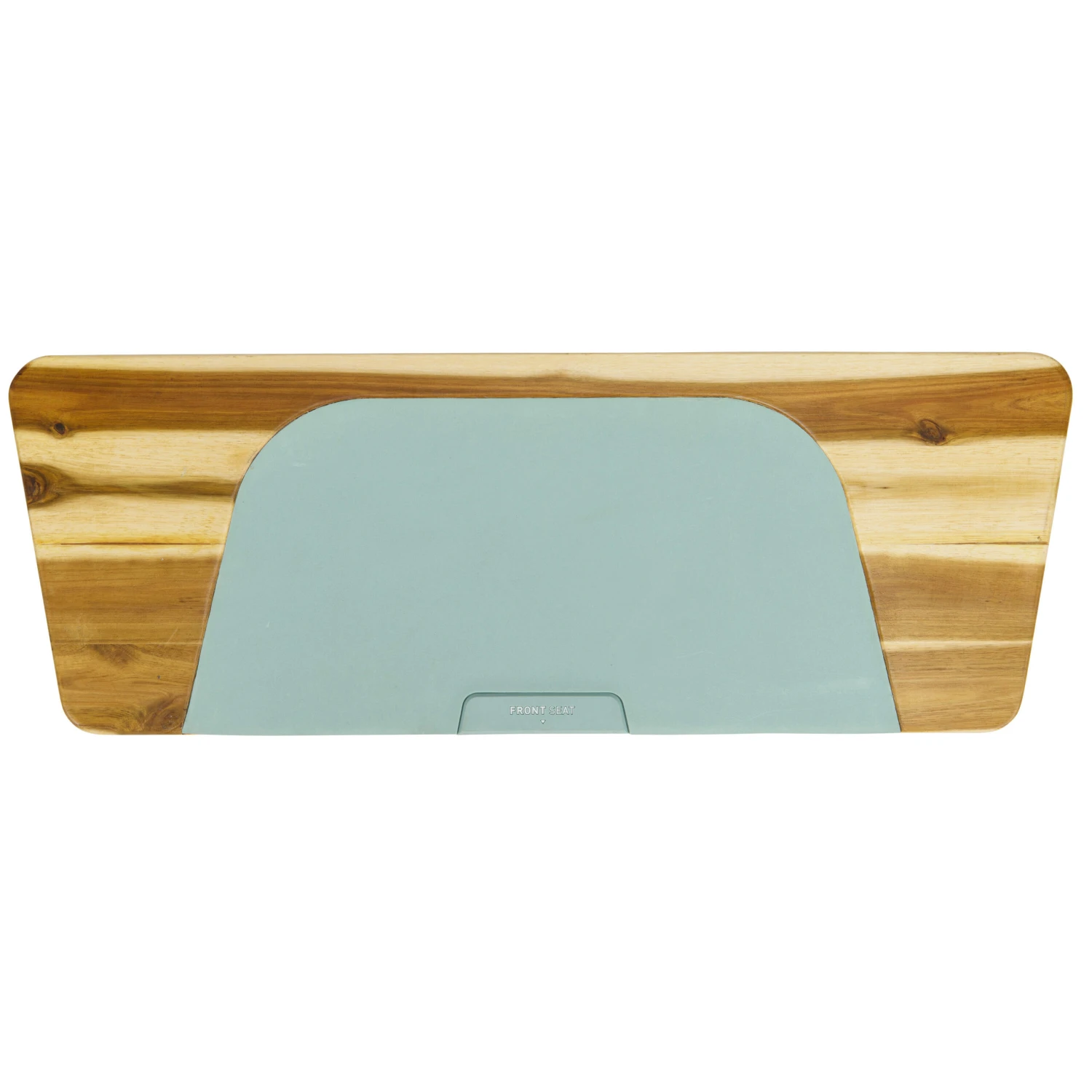

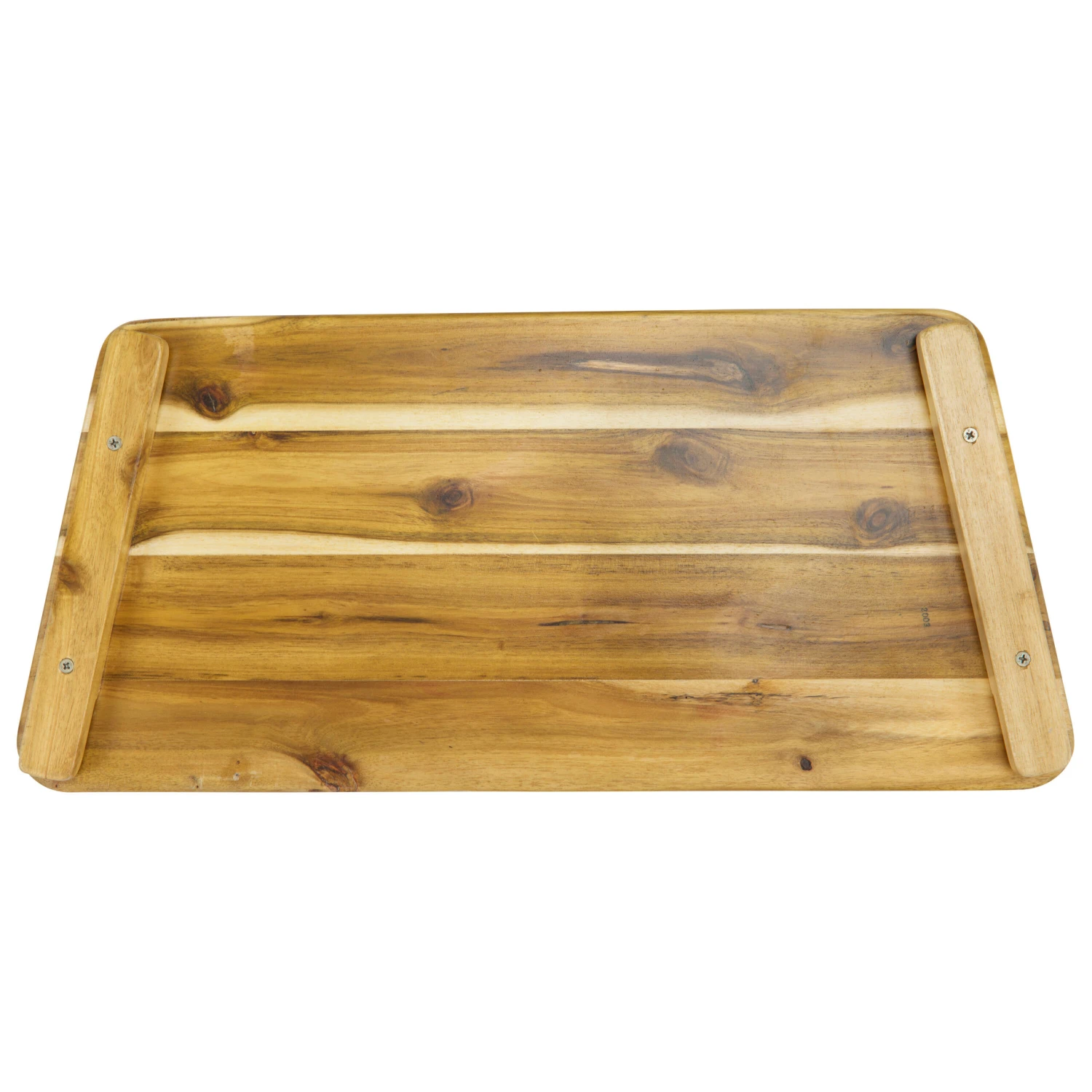

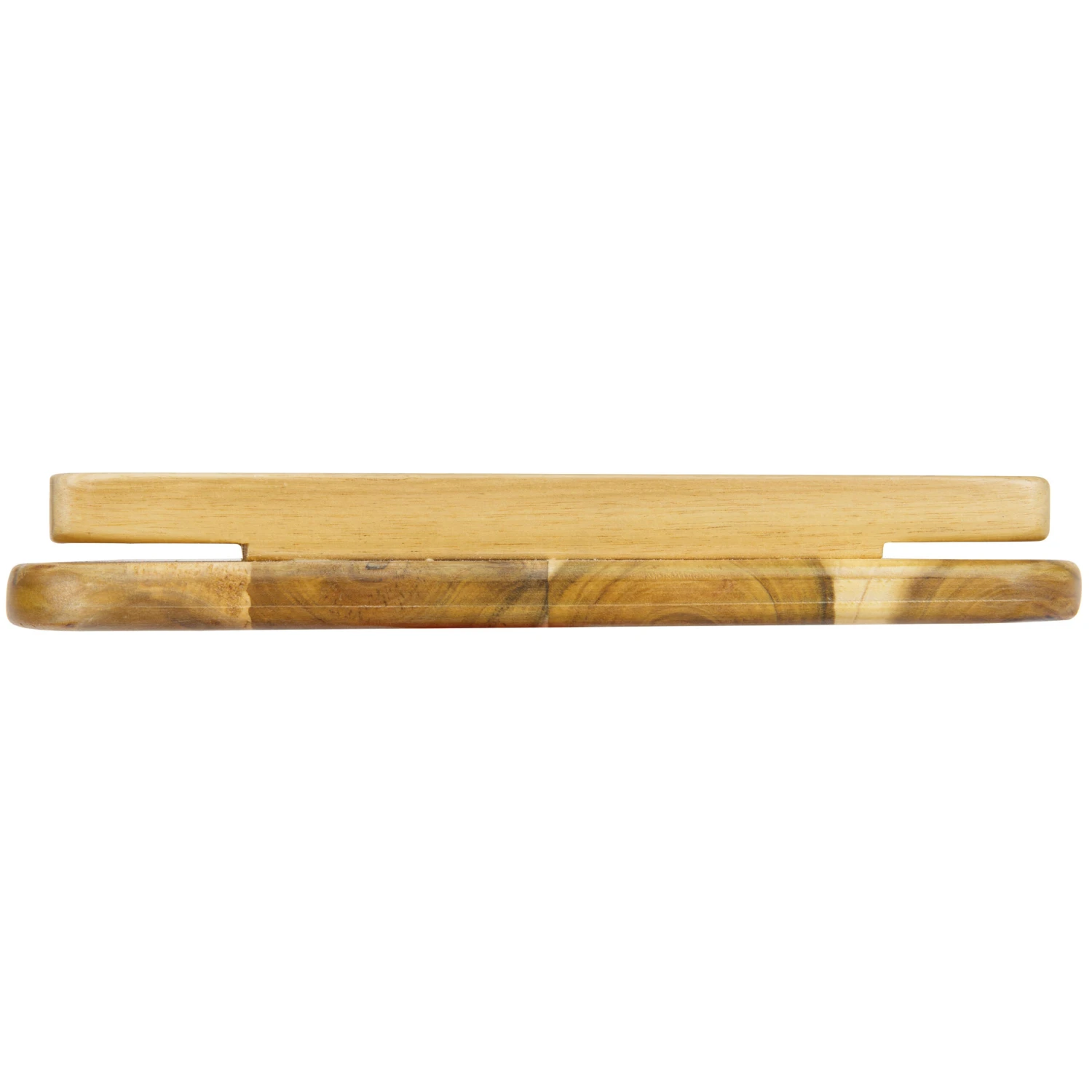

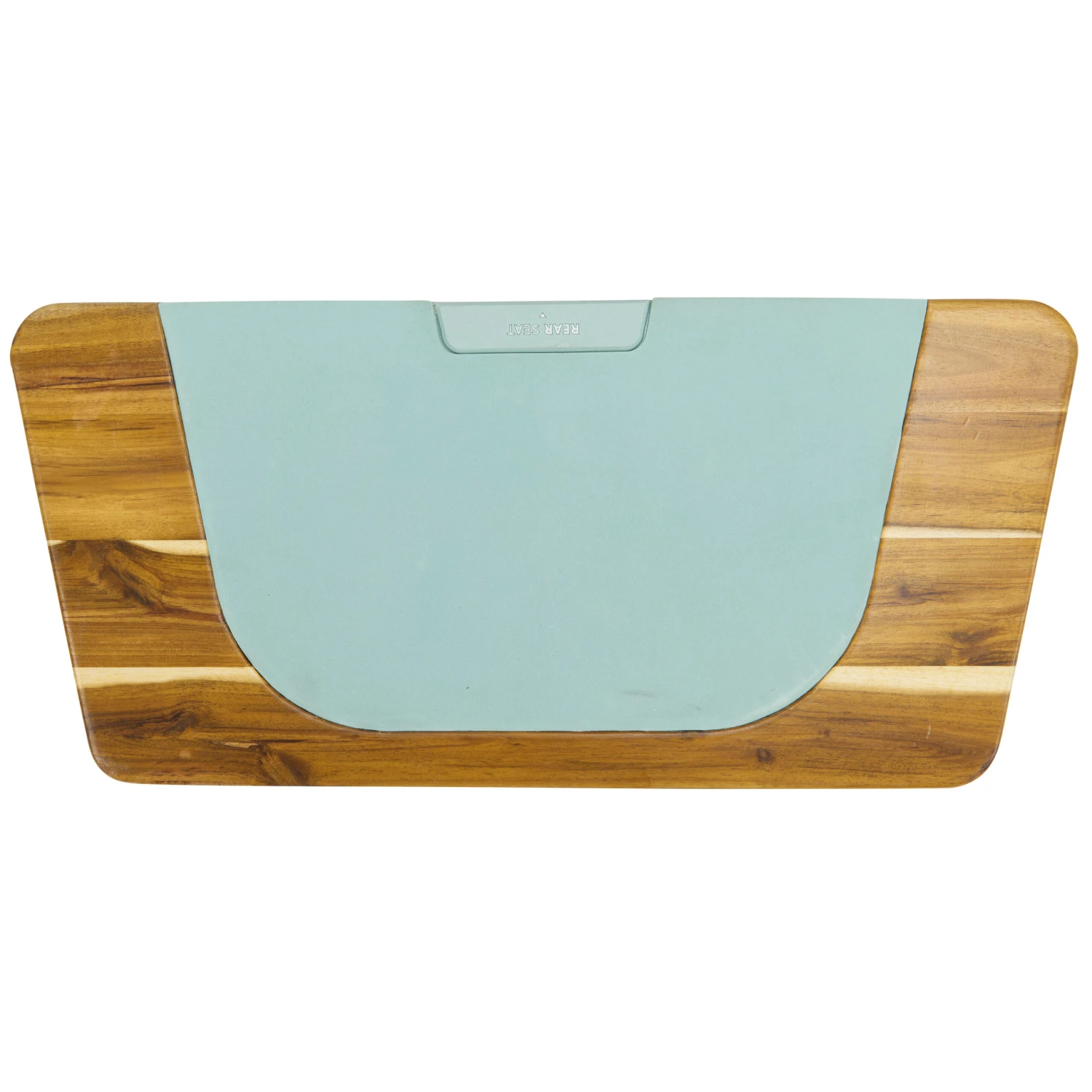

– two wooden seats
– a tightening strap
– a repair kit

Repair and after-sales service

In the event of loss or breakage, the following parts are available from After-Sales service, on the internet or in stores, during the 10 years following the purchase of your canoe:
front seat 8596029, rear seat 8596030, inflation valves 8552219, repair kit 8545487, tightening strap 8517756.

Suggestions for use.

We recommend that you use the product with a buoyancy life vest.
